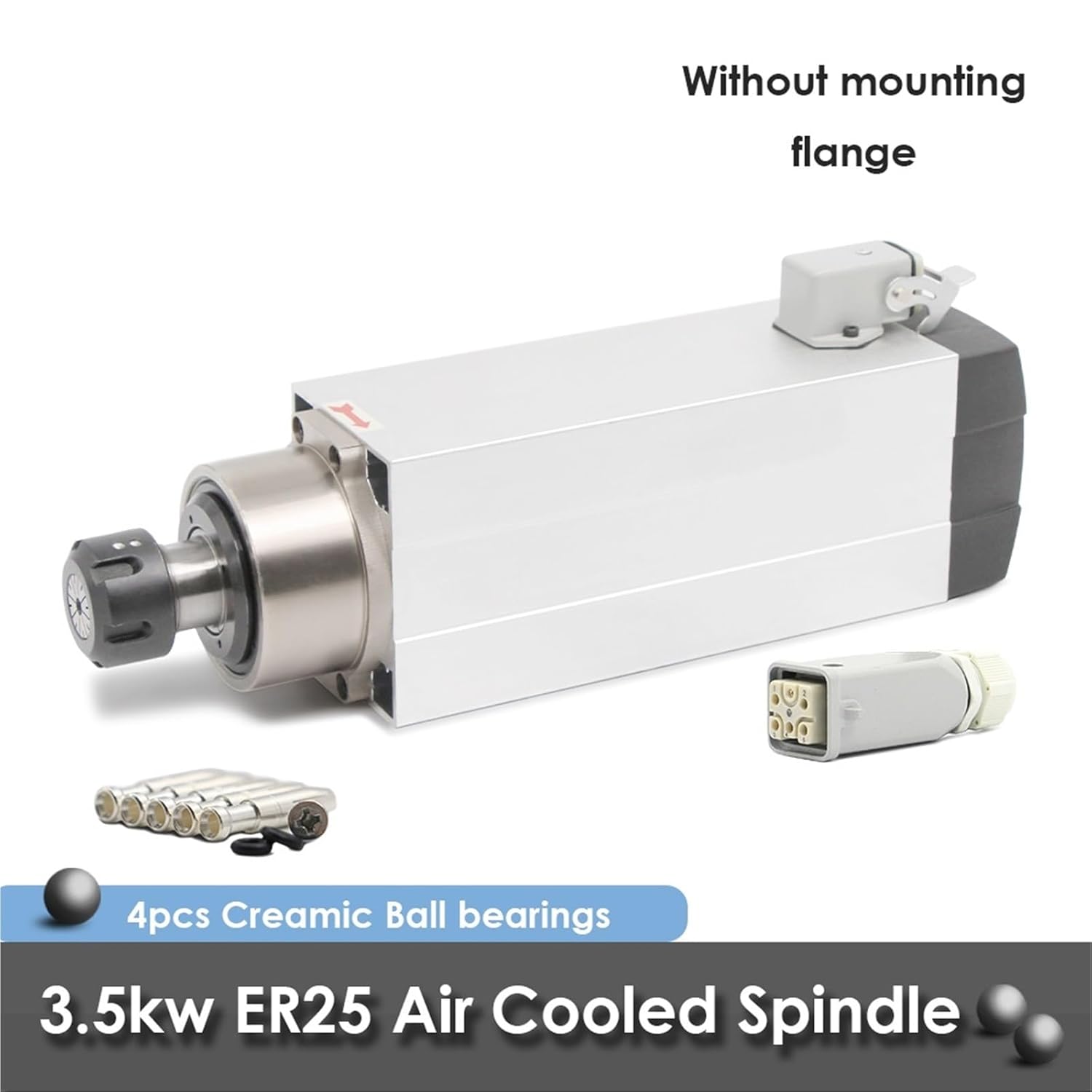

3.5KW ER25 Air Cooled Spindle Motor Ceramic Bearings Square Type Without/with Flange for CNC Milling Machine
Product details
| Management number | 210271195 | Release Date | 2026/04/02 | List Price | $268.24 | Model Number | 210271195 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

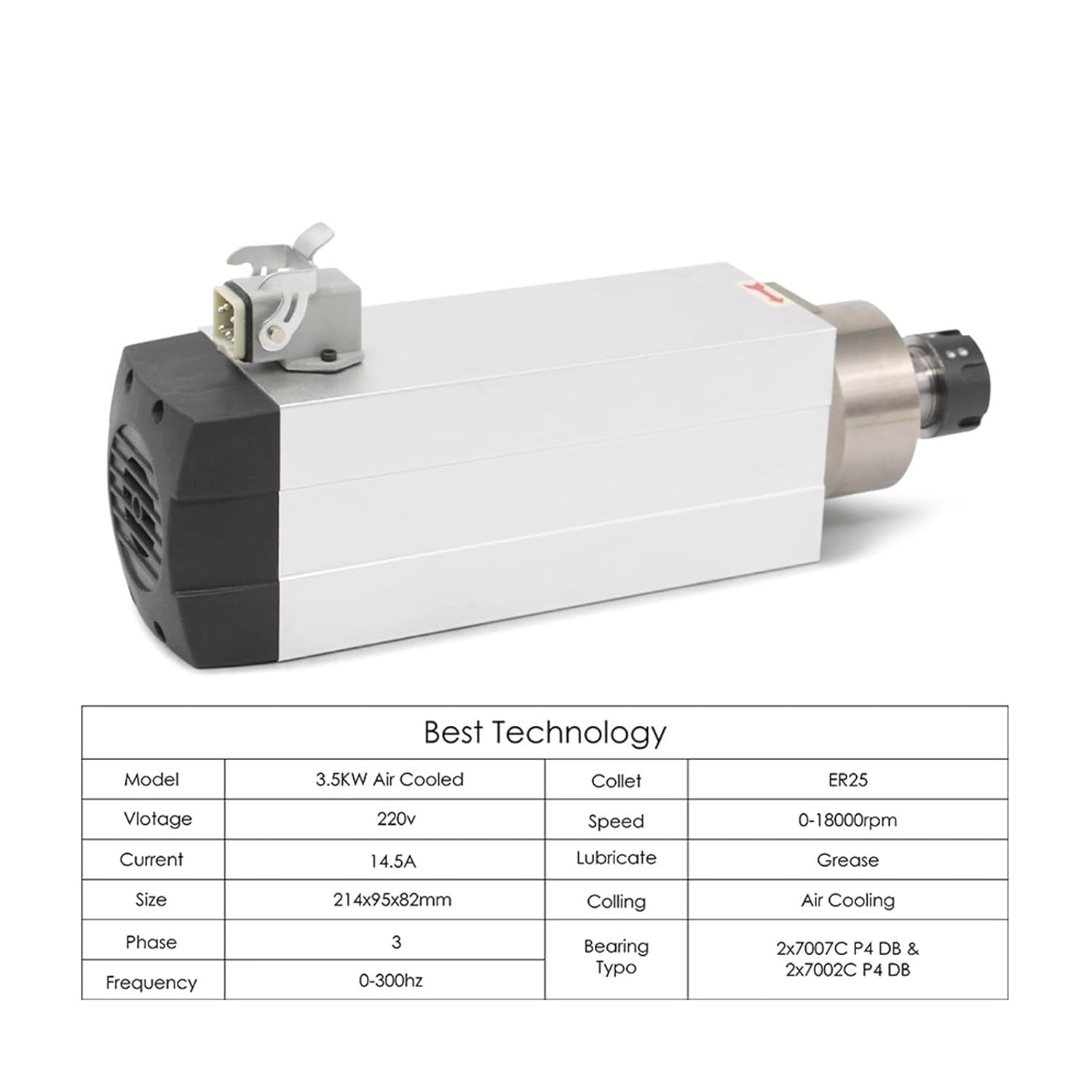

1&220v 35kw ER25 air cooled spindle motor 4pcs ceramic ball bearingsSize214x82x945mmSpeed WaysThrough 3-phase output VFD and adjust the VFD frequenc to change the spindle speed.Cooling:AircoolingPower Interface:Optional waterproof air plugs. Theair plugs marked "1 ","2"," 3","4", "1 ","2 ","3" were connected to VFD(U, V, W), 4 connected VFD ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)Power:3.5kw(1HP=0.735w)Voltage:220v(If you need 380v spindle ,please leave message to us,thank you)Current:14.5AFrequenc:0-300HzSpeed:0-18000rpmRunout Off:Less than0.01mmBearing type:2x7007C P4 DB& 2x7002C P4DB4 pcs ceramic ball bearingsColletER25ClipKnifediameter1mm2mm,3mm,3.175mm(1/8),4mm,5mm,6mm,6.35mm(1/4),7mm,8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm,14mm,15mm,16mmGrease LubricationMain Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel.Bearing is P4grade,2×7007C P4 DB&2x7002C P4 DB 4pcs ceramic ball bearingsincrease the spindle life35kwER25air cooled spindle the collet nut range from 1mm to 16mm better than ER20 collet.High precision,runout off less than 0.01mm.Coaxial degree less than 0.0025mmOrigin : Mainland ChinaDrive : MotorMaximum Torque : 1.59N.mOperating Speed : 0-18000rpmModel Number : 3.5KW ER25 220VApplication : MillingSize : 214*82*94.5mmSpindle Power : 3.5KWSpindle Voltage : 20v (If you need 380v,please tell us)Spindle Current : 14.5ASpindle Cooling : Air cooledSpindle Bearing Type : 2x7007C P4 DB & 2x7002C P4 DBSpindle Collet : ER25Spindle Frequenc : 300HzLubrication : GreaseCollet Range : 1-16mm (Including 1/4,1/8,1/2)
- BQHHWTZ 3.5KW ER25 Air Cooled Spindle Motor Ceramic Bearings Square Type Without/with Flange for CNC Milling Machine
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | BQHHWTZ |
| Item model number | YLCSLBCXB |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
