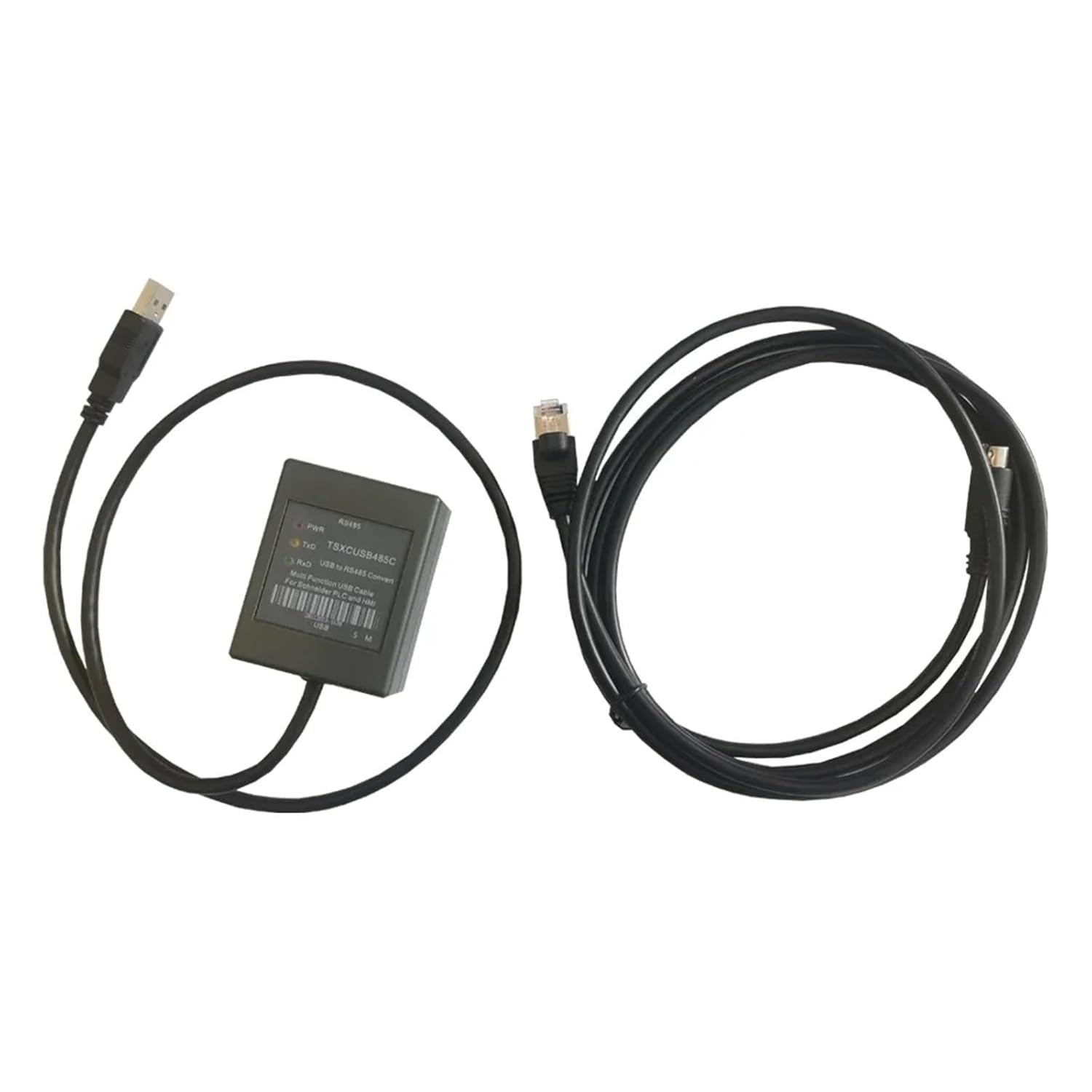

TSXCUSB485C TSXCUSB485 TSXCRJMD25 Programming Cable for Schenider TSX HMI Multi-Function with Switch USB Port

CablesTechnical Parameters:Supported operating system: Windows2000/XP/Vista/Win7.Compatible with USB V1.1 and USB V2.0 specifications.USB bus power supply, the body consumes about 50mA current, and can provide a maximum output current of 500mA.Baud rate: 300bps ~ 1Mbps automatically adapt.With power indicator and data transceiver indicator.Suitable for Premium, Micro, Naza, Nano, Twido, OTB, XBTN/R/S, TSXSCA62.Each set of products includes TSXCUSB485C adapter and TSXCRJMD25 cable.Total length: 2.5 meters, The adapter can be installed on a DIN35mm standard rail.Working temperature: -40-+85.TSXCUSB485C is a multi-functional programming cable that provides serial connection and RS485 signal conversion through the USB interface. The power supply of this cable is taken from the USB port and is no longer powered by the TER port of the . Therefore, this cable supports the connection with the TER or AUX port of the or HIM communication. TSXCUSB485C can be used to communicate between TSX series or HMI and computer. It can be connected to the computer to communicate with Premium, Micro, Nano, Naza, Twido and other series PLCs directly. After changing a different adapter cable, it can also be connected to the computer to communicate with OTB, XBTN/R/S, TSXSCA62, etc. TSXCUSB485C programming cable is an upgraded product of TSXPCX3030. The conversion box of TSXCUSB485C is equipped with a toggle switch to select different working modes. It abandons the way that controls the RS485 transmission and reception. The data transmission and reception conversion adopts automatic flow control, which can be used for multi-point and point-to-point applications. The TER port of TSX series has a PMC (mode control) signal pin, which is used to determine the working mode of the terminal port. When PMC is high, the TER port always works in Uni-Telway Master (master station) mode, which is required for programming. When PMC is low level, the working mode of TER port is determined by configuration, generally it is slave station mode.:TSXCUSB485C :1,USB .2, Uni-Telway MODBUS.,. 2013 3 ,64., TSXCUSB485C , Windows TSXCUSB485 .,COM6 .
